Metro25's Dishnetwork Photos
Click on Photos for Full Size Images

The following Photographs are part of my Dishnetwork Showroom Setup...

The reason why im using seperate Dishes for 119 and 110 is because the 110 Dish was mounted im anticipation of Echostar 4 arriving at the 110 Orbital Position. Believe it or not, this Dish was pointed back in June of 1999 before there was any satellite at the 110. I simply used a magic and marked off the 119 satellite on the mast and did the same thing for Directv at 101. From there, I set the Dish to the middle of the two marks and managed to get a 60% signal the second Echostar 4 was put online. I first got a signal on this satellite on July 16th, 1999 at 11:37 Am EST. I believe I was one of the first one people to have 110 up and running that Day.

148 Degree Orbital Slot Pictures
Taken In Detrot Michigan with a 10 Degree Look Angle!

..........................

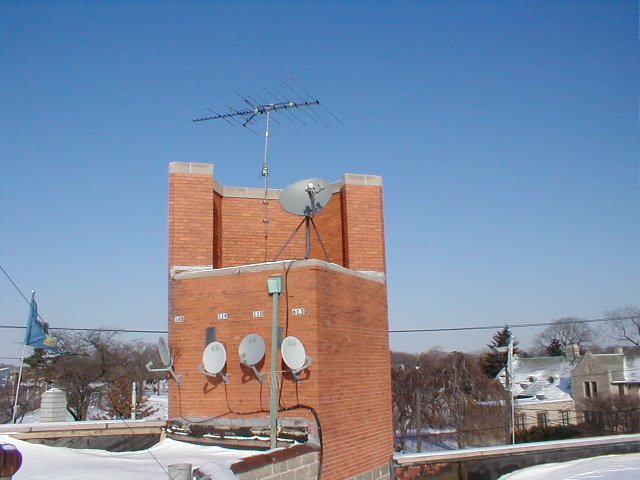

The Picture of the Dish on the Right is from my Antenna farm on the roof. Notice the how the Dish looks like its pointing towards the ground with the 10 Degree Look Angle. When Echostar 4 was moved from 148 to 110, Instead of re-pointing the Dish to 110, I thought it would be better to leave it alone and wait to see what the signal strengh would look like when Echostar put another satellite back at 148. As you can see in the picture in the right, Im getting an excellent signal from Echostar1 in Detroit Michigan! BTW, the picture on the right was taken on Friday December 22nd.

Starband Installation Pictures

......

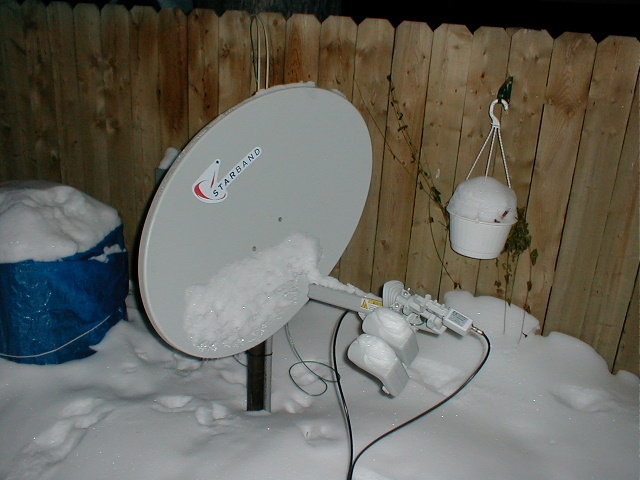

Left: Closeup of Starband Dish with Dishnetwork LNB's

Right: Closeup of Starband Dish without Dishnetwork LNB's

......

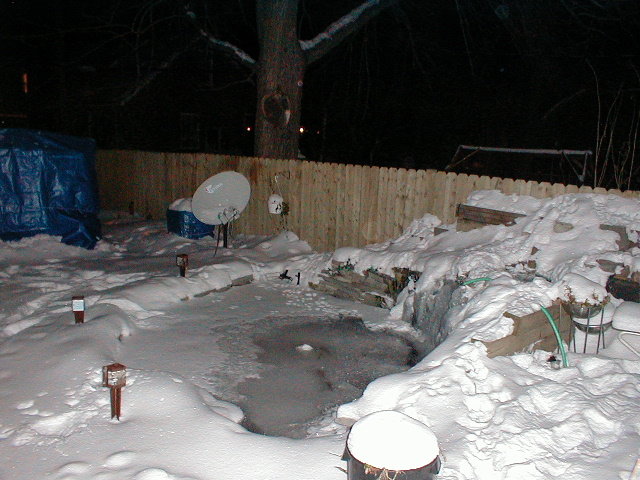

Left: View of Dish overlooking Pond in Backyard

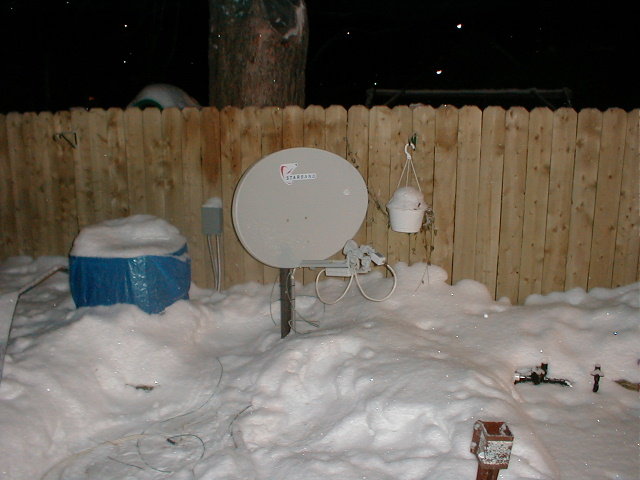

Right: Closeup of Dish with temporary wires, since Im in the process of running the actual wires for the Dish in PVC Conduit.

.....

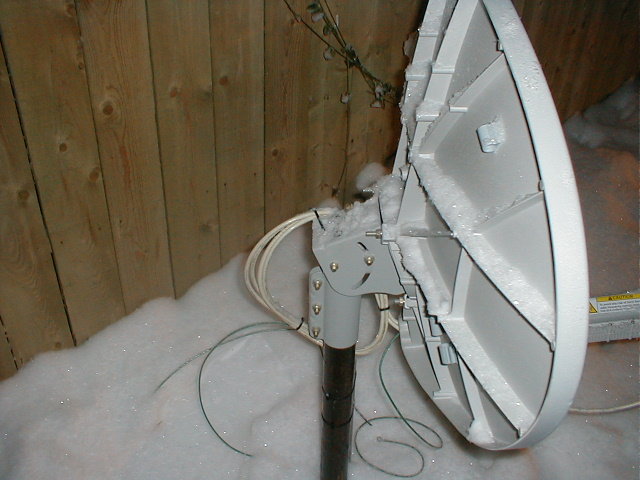

Left: Back of Dish with RG6 Quad Shield CL5 Rated Coax

Right: 3/4 inch PVC Conduit from Starband Dish entering into house

Home Dish Installation Pictures

.....

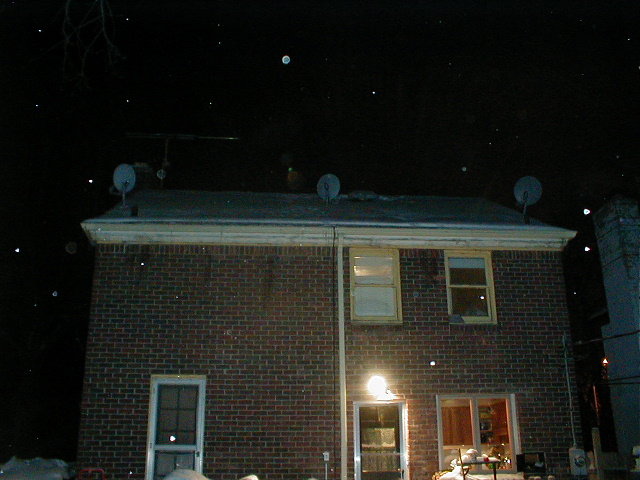

Left: Picture of Dishes on house.....
1. 61.5 Dish on Far Left
2. 119 Dish in Middle for Downloading Recievers for Customers (Formerly pointed Towards Directv)
3. 119/110 Dish500

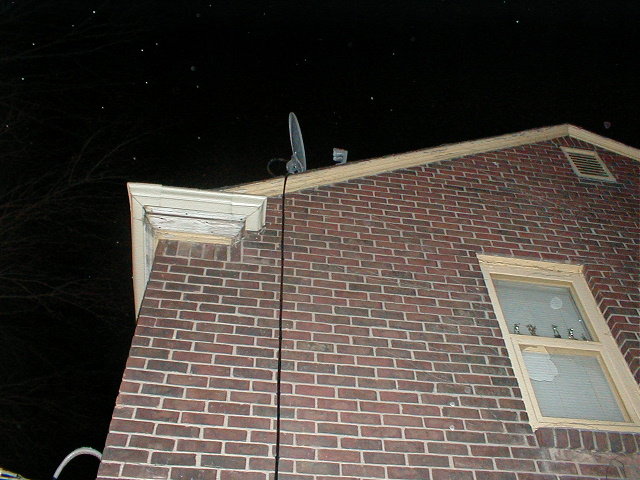

Right: Picture of Dish500, and wire running down side of house

.....

Left: Dish500 Installation, before I had the tree company trim some branches on my Tree so I could mount it on my roof.

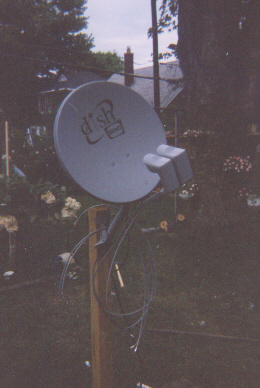

Right: Dish installation before I got Dish500

Indoor Installation



.....

Left: Picture inside my wiring closet with my 2 cascaded Sw64 switches. BTW, keep in mind, Im still in the process of finishing the wiring.

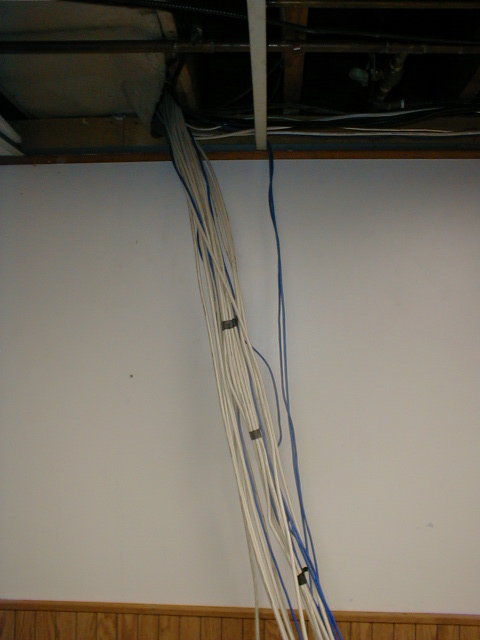

Right: Picture of the Rg6 Quad Shield CL5 rated coax cables coming down from the ceiling into the basement, being prepared to be wired up in the closet on the left. Comscope category 5 cable is in blue!

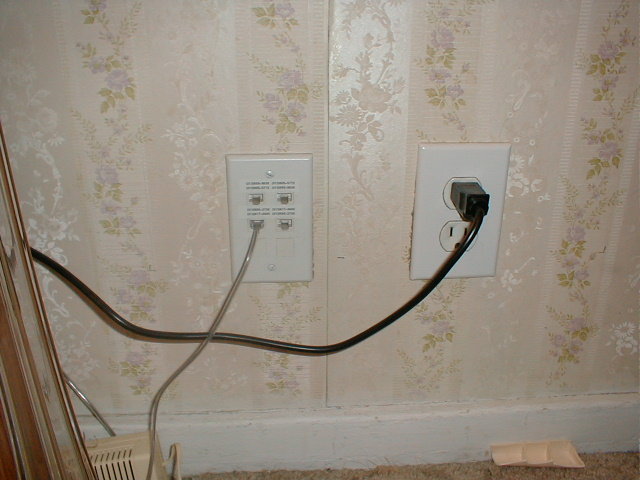

Just a Finished Example of the wall plates I have installed throughout my home.

Various Photos I couldn't find a Place for.....

.....

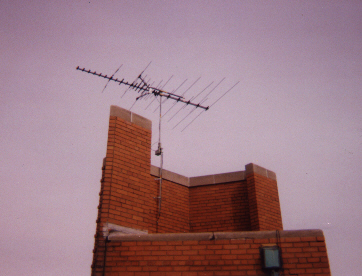

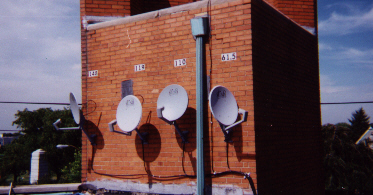

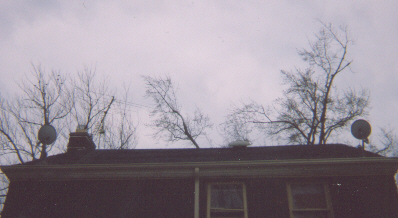

Just some more Pictures of my Antenna Farm taken Last Summer



.....

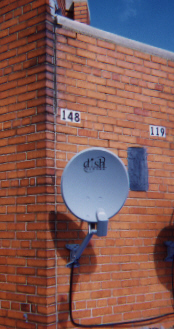

Closeup pictures of my 148 Dish along with my Weinguard Antenna



.....

Left: Scenic Picture Taken right next to Weinguard Ca-7084 Antenna

Right: Sw64 switch at my shop
